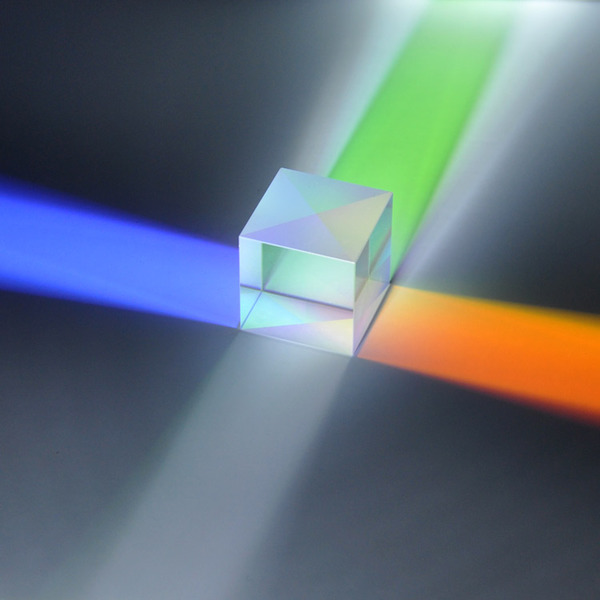

Polarizing Cube Beam Splitter (PBS)



Specifications:

Material: N-BK7, K9 or H-K9L

Dimension Tolerance: +/-0.2mm

Flatness: λ/4@633nm

Beam deviation: 3 arc min

Surface Quality: 60-40

Extinction Ratio: 100:1

Principal Transmittance: Tp>95% and Ts<1%

Principal Reflectance:Rs>99% and Rp<5%


Wavelength488nm - 1550nm
Size (mm)5x5x5
10x10x1012.7x12.7x12.715x15x1520x20x2025.4x25.4x25.450x50x50
